horizontal pressure gradient

description

The horiz_press_grad tasks in polaris.tasks.ocean.horiz_press_grad exercise Omega’s hydrostatic pressure-gradient acceleration (HPGA) for a two-column configuration with prescribed horizontal gradients.

The analysis uses two different baselines, each with a different purpose:

• an analytic reference solution evaluated inside the analysis step that is used as the main accuracy target, and

• a Python-computed two-column HPGA diagnostic from the init step that is used as a consistency check against Omega.

Each task includes:

• an init step at each horizontal/vertical resolution pair,

• a single-time-step forward run at each horizontal resolution, and

• an analysis step that evaluates the analytic reference and compares Omega output with both the reference and the Python-initialized HPGA.

The tasks currently provided are:

ocean/column/horiz_press_grad/salinity_gradient
ocean/column/horiz_press_grad/temperature_gradient
ocean/column/horiz_press_grad/ztilde_gradient
ocean/column/horiz_press_grad/surface_pressure_gradient
ocean/column/horiz_press_grad/hydrostatic_consistency
ocean/column/horiz_press_grad/hydrostatic_consistency_linear
ocean/column/horiz_press_grad/bathymetry_step
ocean/column/horiz_press_grad/bathymetry_step_linear

The first four impose a horizontal gradient and measure convergence toward the analytic reference. The last four are resting states whose true HPGA is identically zero, so the model’s HPGA is entirely error and no reference solution is involved; see the resting-state variants.

The point of these tasks is not only to verify that Omega can reproduce the same discrete answer as the Python initialization, but also to measure how the two-column discretization converges toward a more accurate non-local approximation of the continuous hydrostatic pressure-gradient force.

Each variant isolates a different way a horizontal pressure gradient can arise:

• salinity_gradient and temperature_gradient keep the layers level and impose a horizontal density gradient, so the HPGA comes entirely from the baroclinic term.

• ztilde_gradient keeps the water properties horizontally uniform and tilts the z-tilde interfaces, so the HPGA comes entirely from the geometric (layer-slope) term. This is the classic pressure-gradient-error configuration for a terrain-following coordinate.

• surface_pressure_gradient imposes a horizontally varying surface pressure, as under a floating ice shelf, which tilts the layers through the surface boundary condition rather than through the prescribed z-tilde profile.

why the surface_pressure_gradient variant

Under an ice shelf the ocean surface is not a free surface at zero gauge pressure: it carries the weight of the ice above it, and the sea surface is depressed by roughly \(-p_s / (\rho_0 g)\). Wherever the ice thickness varies, both the surface pressure \(p_s\) and the sea-surface height \(\eta\) therefore vary horizontally, and in the p-star coordinate that depression also compresses the column so that every layer below is tilted, even though the prescribed z-tilde profile is level.

This is precisely the regime in which pressure-gradient errors have historically been worst in terrain-following ocean models. Two things happen at once: the layers acquire a steep slope, and the surface boundary term becomes large. In the reference expression below, the two pieces of that boundary term, \(-g\,\eta'\) and \(+g\,\rho_0\,\alpha(\tilde z_s)\,\tilde z_s'\), nearly cancel because \(\rho_0 \alpha \approx 1\), so the surviving HPGA is a small residual between two large numbers. Any inconsistency in how Omega, the Python initialization, or the reference solution treat the surface would show up immediately as a large error that fails to converge.

The variant is therefore meant to demonstrate that

• Omega robustly supports a nonzero surface pressure and the corresponding depressed, sloping sea surface;

• Omega, the Python two-column diagnostic, and the analytic reference all treat the surface boundary term consistently; and

• Omega still converges to the reference at the same rate, and to comparable accuracy, as in the variants with a flat, unloaded surface.

Together these give confidence that the HPGA will remain consistent beneath real ice shelves, where layers can be steeply sloped. The default configuration is sized for that application: surface_pressure_mid = 8.99e5 Pa is the weight of about 100 m of Antarctic ice, and surface_pressure_grad = 8.99e3 Pa/km corresponds to an ice-thickness slope of about 1 m/km (and hence a sea-surface slope of about −0.9 m/km).

supported models

These tasks currently support Omega only.

mesh

The mesh is planar with two adjacent ocean cells. For each resolution in horiz_resolutions, the spacing between the two columns is set by that value (in km).

The HPGA diagnostic is evaluated on the single internal horizontal edge that connects the two columns, at each layer midpoint. In this page, x denotes the along-layer horizontal direction used by Omega’s horizontal gradient operator. In the idealized two-column planar geometry, this direction follows the line joining the two cell centers. It is therefore related to the shared edge normal, but it is not intended to define a separate exact geometric edge-normal coordinate.

vertical grid

The vertical coordinate is p-star (see p-star), Omega’s ALE pseudo-compressible variant of the z-tilde coordinate, with a uniform pseudo-height spacing for each test in vert_resolutions.

The meaning of the along-layer x direction depends on the task variant. In the salinity_gradient and temperature_gradient tests, the z-tilde interfaces are level, so pressure surfaces are also horizontally level except where they intersect the bathymetry. In the ztilde_gradient test, the prescribed z-tilde gradient tilts the layers, so the pressure surfaces are sloped and the along-layer direction follows those sloping layers. In the surface_pressure_gradient test, a horizontally varying surface pressure depresses and tilts the surface pseudo-height (and compresses the column), so the layers are sloped even though the z-tilde profile itself is level.

reference solution

The reference HPGA is evaluated analytically at the edge (\(x = 0\)) using the chain-rule / Leibniz expansion of the horizontal pressure-gradient force in pseudo-height coordinates. Because the continuous pressure-gradient force is coordinate-invariant, the along-pseudo-height formula equals \(-g\,\partial z / \partial x\big|_{\tilde z}\) exactly, including near the seafloor.

The reference is anchored at the surface rather than the seafloor, because the surface is the boundary the model honours: Init/Omega build the p-star column from the prescribed sea-surface height and surface pressure, so the HPGA vanishes at the surface (for zero surface slope) and grows downward.

The reference acceleration at pseudo-height \(\tilde z\) is

\[ a(\tilde z) = -g\left[\eta' - \rho_0\,\alpha(\tilde z_s)\,\tilde z_s' + \rho_0 \int_{\tilde z_s}^{\tilde z} \bigl(\alpha_{S_A}\,\partial_x S_A + \alpha_{\Theta}\,\partial_x \Theta\bigr)\, d\tilde z'\right], \]

where:

• \(\eta' = \partial_x \eta\) is the sea-surface-height gradient,

• \(\tilde z_s\) is the surface pseudo-height (\(\tilde z_s = -p_s / (\rho_0 g)\), zero only when the surface pressure is zero) and \(\tilde z_s' = \partial_x \tilde z_s\) is its gradient,

• \(\alpha\) is specific volume from the TEOS-10 equation of state,

• \(\alpha_{S_A} = \partial \alpha / \partial S_A\) and \(\alpha_{\Theta} = \partial \alpha / \partial \Theta\) are TEOS-10 first derivatives of specific volume.

The surface boundary term is kept fully general, so a nonzero surface pressure or sea-surface height is supported. The surface_pressure_gradient variant exercises this: a nonzero surface_pressure_grad sets the surface pseudo-height \(\tilde z_s = -p_s / (\rho_0 g)\) and, by default, a matching sea-surface-height slope \(\eta' = -\partial_x p_s / (\rho_0 g)\) (overridable with the optional geom_ssh_grad). The other three variants use zero surface slope.

The gradients \(\partial_x S_A\) and \(\partial_x \Theta\) at fixed \(\tilde z\) are obtained by centred finite-differencing PCHIP interpolants evaluated at \(x = \pm\varepsilon\), where \(\varepsilon =\) reference_horiz_eps_km (1 m by default). This handles moving-node inputs correctly, so it is valid for the ztilde_gradient task as well as the level-layer tasks.

The integral in the formula is evaluated by composite quadrature. The number of sub-panels per interval is set by reference_quadrature_subdivisions (4 by default).

For comparison with a layer-averaged Omega tendency, the analysis step averages \(a(\tilde z)\) over the model’s actual pseudo-height layer bounds using 4-point Gauss–Legendre quadrature with reference_quadrature_subdivisions sub-panels per layer. Every layer valid in both columns is included, down to and including the deepest, which abuts the bathymetry. That layer is the bottom partial cell, and it is where pressure-gradient error is largest; excluding it would hide exactly what the test should be measuring.

python HPGA in the init step

The init step computes a second HPGA estimate directly from the initialized two-column state. This calculation is intentionally much closer to the discrete Omega formulation than the high-fidelity reference is.

First, the step constructs the two-cell mesh and the test vertical grid for the requested (horiz_res, vert_res) pair. Because the geometric water-column thickness depends on the equation of state through the mapping from z-tilde to geometric height, the step iteratively rescales the pseudo-bottom depth so that the resulting geometric water-column thickness matches the prescribed sea-surface and bottom geometry. This fixed-point iteration is provided by polaris.ocean.vertical.pstar_init.PStarInitStep (see Vertical coordinate), from which Init inherits.

Once the initialized state is available, the Python diagnostic computes the same thermodynamic quantities used by Omega: pressure, specific volume, geometric height, and Montgomery potential. It then forms a two-column finite difference,

\[ \frac{\partial M}{\partial x} \approx \frac{M_R - M_L}{\Delta x}, \qquad \frac{\partial \alpha}{\partial x} \approx \frac{\alpha_R - \alpha_L}{\Delta x}, \]

with edge pressure

\[ p_{\mathrm{edge}} = \frac{p_L + p_R}{2}, \]

and writes the corresponding diagnostic

\[ \mathrm{HPGA}_{\mathrm{python}} = -\frac{\partial M}{\partial x} + p_{\mathrm{edge}}\frac{\partial \alpha}{\partial x} \]

to init.nc.

This Python HPGA is not the main reference solution. Instead, it checks whether Omega’s one-step tendency matches the expected two-column discrete calculation from the initialized state.

the finite-volume HPGA

The init step also writes a second field, HPGAFiniteVolume, alongside HPGA. HPGA is unchanged in name, meaning and values – it remains the centered scheme, and the recorded baselines for all seven variants are unaffected by the new field.

HPGAFiniteVolume is the Python counterpart of Omega’s higher-order PressureGradFiniteVolume scheme. Where the centered scheme compares the two columns at a fixed layer index, this one compares them at a fixed pressure: it differences the specific volume of the two columns at matched pressure and integrates that difference along the column from the sea floor. Because the difference is identically zero whenever the two columns describe the same water, the scheme contributes nothing of its own for a resting ocean however the coordinate is tilted, and what it returns is whatever the state’s own boundary values imply – see below.

What that buys, measured on hydrostatic_consistency_linear – the one variant whose temperature and salinity are exactly linear in pressure, and so the only one where the scheme’s exact set is in play:

coordinate tilt	HPGA (centered)	HPGAFiniteVolume
0.05 m/km	9.1e-08 m s⁻²	1.8e-10 m s⁻²
1 m/km	1.8e-06 m s⁻²	3.5e-09 m s⁻²
50 m/km	6.9e-05 m s⁻²	2.0e-07 m s⁻²

at 256 m layers: a factor of 340 to 520, and 21 to 1050 across the full sweep.

Why this is not machine precision, though the profile is inside the exact set. The scheme’s column scan is anchored at the sea floor, and the anchor is the one quantity in it that comes from the model’s own geometry rather than from the scheme’s arithmetic.

Both Polaris and Omega turn pressure into geometric height with a midpoint rule, summing rho0 * SpecVol * PseudoThickness over layers. At 256 m layers that truncates a 3500 m column by about 1.1 mm. The initial condition holds the sea floor at the prescribed bathymetry and solves for the bottom pressure that reproduces it, and each column converges exactly – to the pressure that makes its own midpoint sum come out at 3500 m. A tilted coordinate puts the two columns’ layer interfaces in different places, so their truncation errors differ slightly, by 7.1e-8 m. At a common pressure the two columns’ heights therefore genuinely differ by that much, and the scheme reports it.

The residual is entirely the anchor: every increment of the scan is zero to round-off, so the tendency is constant down the column and equals the anchor’s own contribution to a part in 10⁷. The property the scheme exists for is intact; what these numbers measure at the bottom of the column is the initial condition, not the discretization.

Away from that exact set the gain is real but far smaller, because the scheme is then second-order accurate rather than exact. On the curved hydrostatic_consistency profile it is about six times better than centered at 256 m layers and about twice as good at 64 m, both converging. On bathymetry_step, the variant that most resembles the bottom-layer error seen in realistic global runs, it is roughly 400 times better.

Nothing selects between the two fields yet: both are written, and which one the analysis steps compare against Omega is decided once the corresponding Omega option exists.

the resting-state variants

The four resting-state variants ask a different question from the other four. Rather than measuring convergence toward a reference, they place the ocean in a state whose true HPGA is identically zero, so that whatever the model returns is error.

The construction is simple. With every *_grad option zero, conservative temperature and absolute salinity are the same functions of pseudo-height in both columns. Pseudo-height is a rescaled pressure, so specific volume becomes a function of pressure alone,

\[ \alpha = \alpha\bigl(\Theta(p), S_A(p), p\bigr) \equiv \alpha(p), \]

isobars are level surfaces, and the true HPGA vanishes everywhere in the fluid — for any sea-floor shape and any tilt of the coordinate surfaces. This is the property the Omega higher-order pressure-gradient design calls discrete hydrostatic consistency, and these variants measure how well the discrete scheme reproduces it.

Each variant sweeps a tilt at fixed resolution and reports the RMS HPGA as a function of that tilt, together with the exponent \(q\) in \(\lVert\text{HPGA}\rVert \sim (\text{tilt})^{q}\):

• \(q \approx 1\) — specific volume is effectively piecewise constant in pressure, which is what the current centered scheme does;

• \(q \approx 2\) — consistent with a residual set by a per-cell Taylor expansion of the equation of state;

• round-off, independent of tilt — the scheme is exactly hydrostatically consistent.

what actually tilts the coordinate

The two variants tilt different things, and they turn out to probe different mechanisms.

hydrostatic_consistency sweeps z_tilde_bot_grad, which stretches one column’s p-star reference grid relative to the other’s, so the cross-edge offset of interface \(k\) grows linearly with depth. This is the only mechanism in the two-column task that tilts interior coordinate surfaces.

bathymetry_step sweeps geom_z_bot_grad instead, and it does not tilt them. With a single reference grid shared by both columns, moving the sea floor changes only where that grid is clipped: every interior interface sits at an identical pseudo-height, and hence an identical pressure, in both columns. The entire signal is therefore concentrated in the deepest layer valid in both columns — the bottom partial cell. That makes the variant a test of the bottom cell rather than of layer tilt, and it is the two-column analogue of the bottom-layer error seen in realistic global Omega runs.

Because that layer carries the whole signal, the resting-state analysis keeps it, unlike the reference-based analysis step, which drops it. For the same reason bathymetry_step sets tilt_fit = False: its error changes in steps as the two columns’ maxLevelCell values change, so it is a staircase in the sea-floor gradient rather than a power law and a fitted exponent would be meaningless.

the two _linear variants

Every resting state has a true HPGA of zero, but that is not the same as being a state the finite-volume scheme reproduces exactly. The scheme’s exact set is set by what its vertical reconstruction can represent, which in Omega’s Phase 1 is profiles linear in pressure. The two _linear variants replace the five-node curved temperature and salinity profiles with two-node ones, so they are exactly linear in pseudo-height and hence in pressure. Everything else is unchanged.

That separation is what makes them worth running:

	profile	what tilts
hydrostatic_consistency	curved	the coordinate
hydrostatic_consistency_linear	exact	the coordinate
bathymetry_step	curved	the sea floor
bathymetry_step_linear	exact	the sea floor

On the curved variants the residual mixes the scheme’s truncation off the exact set with whatever the geometry contributes, and neither can be read alone. On the _linear variants the profile contributes nothing, so what is left is the geometry’s doing.

bathymetry_step_linear is the one to watch. It is the only configuration in the family that is both inside the exact set and in the geometry that matters for the global bottom-layer error — interior coordinate tilt turns out to contribute essentially nothing globally, so hydrostatic_consistency and its _linear twin exercise a mechanism that is real but not the one driving the problem. Like bathymetry_step it sets tilt_fit = False, and for the same reason.

It is also where the scheme’s advantage is largest: measured offline at 4 km and 256 m layers, HPGAFiniteVolume is 4.3e-10 m s⁻² against the centered 9.1e-5 m s⁻² at a 200 m/km sea-floor gradient — a factor of 2e5, against the 20–1000× the coordinate-tilt variants show.

severity, and why the column is deep

The other four variants use a 500 m column resolved at 0.5–4 m. That is one to three orders of magnitude finer than the ~250 m layers in the deep ocean of a realistic global run, and the centered scheme passes ztilde_gradient there with an RMS HPGA of ~7e-12 m s\(^{-2}\) — six orders of magnitude below the error the resting-state variants exist to measure. Both new variants therefore use a 3500 m column resolved at 64–256 m.

The analysis enforces a sensitivity gate: the largest RMS HPGA anywhere in the sweep must reach resting_state_sensitivity_min_rms (1e-6 m s\(^{-2}\) by default, the order of the global bottom-layer error). A sweep that falls short is not exercising the failure mode at all, and the step fails rather than reporting a misleading pass.

At a fixed tilt gradient the RMS HPGA is independent of horizontal resolution, because the cross-edge offset and the cell spacing scale together. The horizontal sweep is therefore short; the vertical resolution is what matters.

the bathymetry guard

Both variants set partial_cell_type = None, and the analysis checks that the sea floor really is where the configuration asked for it, to within resting_state_max_bathy_error.

The reason is that partial-cell snapping moves the sea floor to the nearest representable depth, since min_pc_fraction forbids bottom cells thinner than a set fraction of a layer. The p-star column is anchored at the prescribed sea surface, so this does not break the resting state — the sea surface stays exactly level and the state is still exactly at rest. What it breaks is the meaning of the sweep: the tilt actually tested is no longer the tilt configured.

That matters most for bathymetry_step, where the swept parameter is the sea floor. At some gradients snapping moves both columns to the same representable depth, so a nominal 400 m step becomes no step at all and the measured RMS HPGA drops to round-off — which would read as a spectacular pass rather than a configuration that stopped testing anything.

partial_cell_type = None does not mean “no partial cells”, despite how it reads. The p-star reference grid is clipped at each column’s pseudo-bottom depth unconditionally, so a partial bottom cell is produced either way. The option controls only whether the sea floor is moved before that clipping: None leaves it alone, partial moves it so the bottom cell is at least min_pc_fraction of a full layer, and full moves it to a reference boundary — full is the setting that actually removes partial cells.

The cost of None is that there is no minimum-thickness floor, so a sweep can include bottom cells thinner than a realistic run would use (as thin as 0.002 of a layer in the shipped bathymetry_step sweep). The state is exactly at rest however thin the cell, so the measurement stays valid; but it is why the error tracks the contrast in bottom-cell fraction between the two columns rather than the nominal gradient, and hence why that variant is a staircase.

(Before the p-star column was anchored at the prescribed sea surface, this same snapping surfaced as a spurious sea-surface tilt of many metres, which was a real barotropic pressure gradient masquerading as discretization error. That is fixed in the framework; the guard here is about the geometry under test, not about the resting state.)

config options

Shared options are in section [horiz_press_grad]:

# resolutions in km (distance between the two columns)
horiz_resolutions = [4.0, 3.0, 2.0, 1.5, 1.0, 0.75, 0.5]

# vertical resolution in m for each two-column setup
vert_resolutions = [4.0, 3.0, 2.0, 1.5, 1.0, 0.75, 0.5]

# sea-surface gauge pressure midpoint and x-gradient (Pa and Pa/km).  The
# sea-surface height defaults to the resting depression
# -surface_pressure / (rho0 * g); add the optional geom_ssh_mid / geom_ssh_grad
# to override that default.
surface_pressure_mid = 0.0
surface_pressure_grad = 0.0

# geometric sea-floor midpoint value and x-gradient
geom_z_bot_mid = -500.0
geom_z_bot_grad = 0.0

# pseudo-height bottom midpoint and x-gradient
z_tilde_bot_mid = -576.0
z_tilde_bot_grad = 0.0

# midpoint and gradient node values for piecewise profiles
z_tilde_mid = [0.0, -48.0, -144.0, -288.0, -576.0]
z_tilde_grad = [0.0, 0.0, 0.0, 0.0, 0.0]

temperature_mid = [22.0, 20.0, 14.0, 8.0, 5.0]
temperature_grad = [0.0, 0.0, 0.0, 0.0, 0.0]

salinity_mid = [35.6, 35.4, 35.0, 34.8, 34.75]
salinity_grad = [0.0, 0.0, 0.0, 0.0, 0.0]

# reference settings
reference_quadrature_method = gauss4
reference_quadrature_subdivisions = 4
reference_horiz_eps_km = 1.0e-3

# regression thresholds and convergence checks
omega_vs_polaris_rms_threshold = 1.0e-10
omega_vs_reference_high_res_rms_threshold = 1.0e-6
omega_vs_reference_convergence_rate_min = 1.5
omega_vs_reference_convergence_rate_max = 2.1
omega_vs_reference_convergence_fit_max_resolution = 4.0

The omega_vs_polaris_rms_threshold bounds the RMS difference between the Omega forward HPGA and the Python-initialized HPGA (the consistency check). The omega_vs_reference_* options bound the Omega-vs-reference accuracy: the RMS error at the highest resolution, the allowed power-law convergence slope, and the finest horizontal resolution included in the convergence fit (all resolutions are still shown in the plots).

The four task variants each specialize one horizontal gradient field:

• salinity_gradient: nonzero salinity_grad

• temperature_gradient: nonzero temperature_grad

• ztilde_gradient: nonzero z_tilde_bot_grad

• surface_pressure_gradient: nonzero surface_pressure_mid and surface_pressure_grad (with the sea-surface height following the default surface-pressure depression), representing an overlying ice shelf

The two resting-state variants use their own set of options, which the four gradient variants leave at inert defaults:

# the horiz_press_grad option swept by the resting-state variants
tilt_option = z_tilde_bot_grad

# values of tilt_option in m/km, swept at every resolution pair
tilt_values = [0.05, 0.1, 0.5, 1.0, 5.0, 10.0, 50.0]

# whether to fit the exponent q in |HPGA| ~ tilt**q, and the largest tilt
# included in that fit
tilt_fit = True
tilt_fit_max = 10.0

# the largest RMS HPGA anywhere in the sweep must reach at least this value
resting_state_sensitivity_min_rms = 1.0e-6

# maximum RMS HPGA allowed anywhere in the sweep, or "none" to leave it
# unenforced
resting_state_max_rms = none

# maximum allowed |bottomDepth - requested|, so the swept tilt describes the
# geometry actually tested
resting_state_max_bathy_error = 1.0e-6

resting_state_max_rms is deliberately unset. The centered scheme is expected to fail any meaningful value, and the threshold for a hydrostatically consistent scheme should be set from what is measured rather than guessed in advance.

time step and run duration

The forward step performs one model time step and outputs pressure-gradient diagnostics used in the analysis.

analysis

The analysis step computes and plots:

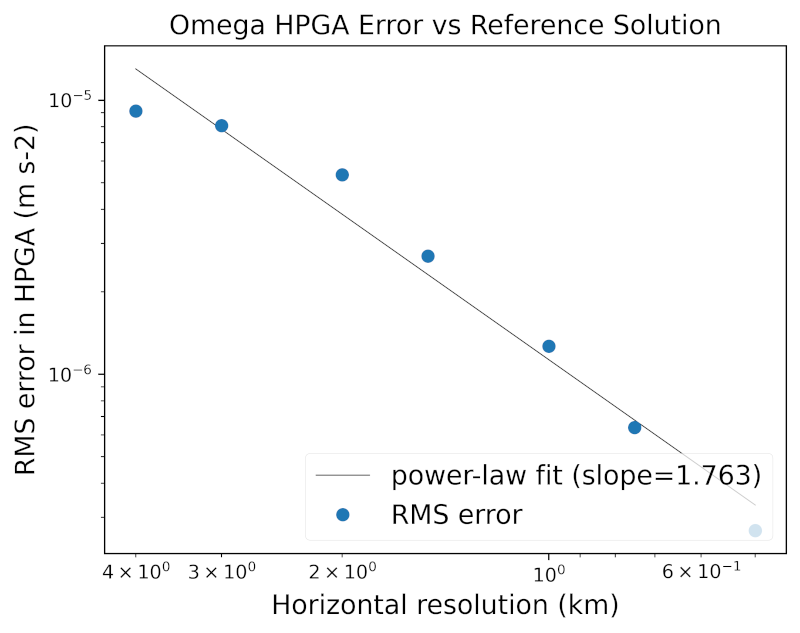

• Omega RMS error versus reference (omega_vs_reference.png), including a power-law fit and convergence slope, and

• Omega RMS difference versus Python initialization (omega_vs_python.png).

The corresponding tabulated data are written to omega_vs_reference.nc and omega_vs_python.nc.

For the Omega-versus-reference comparison, the analytic reference \(a(\tilde z)\) is layer-averaged over the model’s actual pseudo-height layer bounds (from init.nc) using 4-point Gauss–Legendre quadrature. All layers valid in both columns are included, down to and including the deepest.

Earlier versions excluded that bottom layer. That was a limitation of the previous reference solution, which took a fourth-order finite difference across five columns and could not form its stencil where a neighbouring column’s collocation point fell below its own bathymetry. The reference is now a single analytic column evaluated at the edge, valid all the way to the seafloor, so the exclusion no longer has a basis and has been removed. The Omega-versus-Python comparison always included the layer, so the two comparisons now agree about which layers count.

For the Omega-versus-Python comparison, the analysis uses the HPGA written by the init step in init.nc, so this second metric should be read as an implementation-consistency check rather than as an accuracy measure against the high-fidelity reference.

Implementation details for the ReferenceColumn evaluator and the init and analysis steps are described in horiz_press_grad.
