seamount

The ocean/seamount test is a standard sigma coordinate test problem, which is documented in Beckmann and Haidvogel (1993), Haidvogel et al. (1993) and Shchepetkin and McWilliams (2003). This case tests the error due to pressure gradients in tilted layers.

supported models

These tasks support both MPAS-Ocean and Omega.

The vertical coordinate is built in geometric height in either case, and is converted to the pseudo-height (RefPseudoThickness) that Omega’s p-star dynamics read when model = omega. Both models therefore start from the same geometric layer positions, which is what makes the two comparable. The conversion integrates gauge pressure down each column through the configured equation of state, so it needs no p-star-specific initialization and no reference pseudo-grid.

Because Omega’s linear equation of state has no reference temperature or salinity, eos_linear_Tref and eos_linear_Sref must both be zero; the Beckmann and Haidvogel reference state is folded into eos_linear_rhoref instead.

Both models use a split-explicit time stepper (SplitExplicitRK2 in Omega) with the same baroclinic and barotropic steps, dt_per_km and btr_dt_per_km, so the two runs stay comparable.

variants

Each task exists in eight trees, combining the equation of state, the stratification and the vertical coordinate used for the initial condition: planar/seamount/{eos}/{stratification}/{coord}, or in full planar/seamount/{linear,nonlinear}/{exponential,linear_pressure}/{sigma,zstar}.

The stratification chooses whether a finite-volume pressure gradient is exact on the profile:

• exponential — the realistic profile, Beckmann and Haidvogel eqn 16, with the stratification concentrated in the upper 500 m over a nearly unstratified abyss. It is in no pressure-gradient scheme’s exact set, so both schemes carry a truncation error and the comparison is on a profile the ocean actually has.

• linear_pressure — temperature linear in pressure, salinity constant. A finite-volume pressure gradient is exact here, so its spurious velocity should collapse while the centered scheme’s does not, and anything that survives the finite-volume run is not pressure-gradient truncation error. See a stratification linear in pressure.

Warning

Compare the two schemes in the nonlinear trees, not the linear ones. Under the linear equation of state, specific volume depends only on temperature and salinity, so a temperature linear in pressure makes specific volume linear in pressure as well – and the same function of pressure in every column, which leaves the ocean horizontally homogeneous in pressure coordinates. That nulls the centered scheme too, and the configuration stops being a test of anything. Measured on this case, specific volume departs from a straight line in pressure by 4.6e-4 of its range under the linear equation of state against 8.6e-3 under TEOS-10, whose compressibility keeps the dependence nonlinear no matter what the tracers do.

This is the same trap one level down from the one in a stratification linear in pressure: a null configuration is null only for the scheme it was built for, and here an equation of state quietly extends it to both. The linear / linear_pressure trees remain useful as regression tests; they are not a scheme comparison.

The two span the same density range under the linear equation of state, 3.0 kg m^{-3}, so a spurious velocity measured on one is comparable to the other.

The coordinate chooses how much the layers tilt:

• sigma — the terrain-following coordinate, and the main target. Every layer is tilted relative to the isobars by construction, so the pressure gradient error is exercised throughout the water column.

• zstar — the control. Layers are nearly level, so the spurious velocity should be much smaller. Partial bottom cells are used here: z-star cuts the reference grid at the seafloor, and without snapping the seamount flanks produce bottom cells only centimetres thick. Set partial_cell_type = full for the limiting case in which the layers are exactly level and the pressure gradient vanishes to machine precision.

The equation of state chooses whether density depends on pressure:

• linear — rho = rhoref - alpha * (T - Tref) + beta * (S - Sref), with no pressure dependence at all.

• nonlinear — TEOS-10 for Omega and Jackett-McDougall (jm) for MPAS-Ocean, the closest nonlinear equation of state it has. The thermal expansion coefficient then varies along a tilted layer, which the linear trees cannot represent.

Under the exponential stratification the two equations of state are given the same buoyancy stratification, as described under initial conditions, so a difference in spurious velocity between the linear and nonlinear trees is attributable to the equation of state and not to a different N^2. Under linear_pressure the tracer is prescribed directly rather than inverted from a density, so the two trees span the same temperature range instead and their densities differ.

One caveat on cross-model comparison: TEOS-10 and Jackett-McDougall are genuinely different functions, not two implementations of one, so the two models are only expected to agree qualitatively in the nonlinear trees. In the linear trees they solve the same equation of state and can be compared directly.

default task

description

The test case begins with a zero velocity field and is unforced, so the exact solution is to remain motionless. The seamount rises from a flat sea floor in the center of the domain. In a pure z-level vertical coordinate without partial bottom cells (partial_cell_type = full), the pressure gradient will remain zero and induce no flow to machine precision. When any layer tilting is added, including from partial bottom cells, some flow is introduced by the pressure gradient error. This is fundamentally because the pressure must be extrapolated vertically at cell centers to the mid-depth of the edge. The default setting is the sigma coordinate. These are the images produced in the viz_centered folder, which runs by default in this task because the 6 day forward run is too long to want to repeat just to get the plots.

pressure-gradient schemes

Under Omega the task performs a second forward run, forward_finite_volume, with PressureGradType: FiniteVolume instead of the centered scheme forward_centered uses. Both start from the same init step, so the two schemes are compared at an identical state rather than at two states that also differ in their initial condition.

The step is added only when model = omega. MPAS-Ocean has only the centered scheme, so under MPAS-Ocean the task is init, forward_centered, viz_centered and analysis.

Every forward step is named for its scheme, including in the short task which runs only the centered one, so an output directory says which scheme produced it without anyone having to open the model config. The scheme is also written into the Omega config explicitly rather than left to Omega’s default, for the same reason.

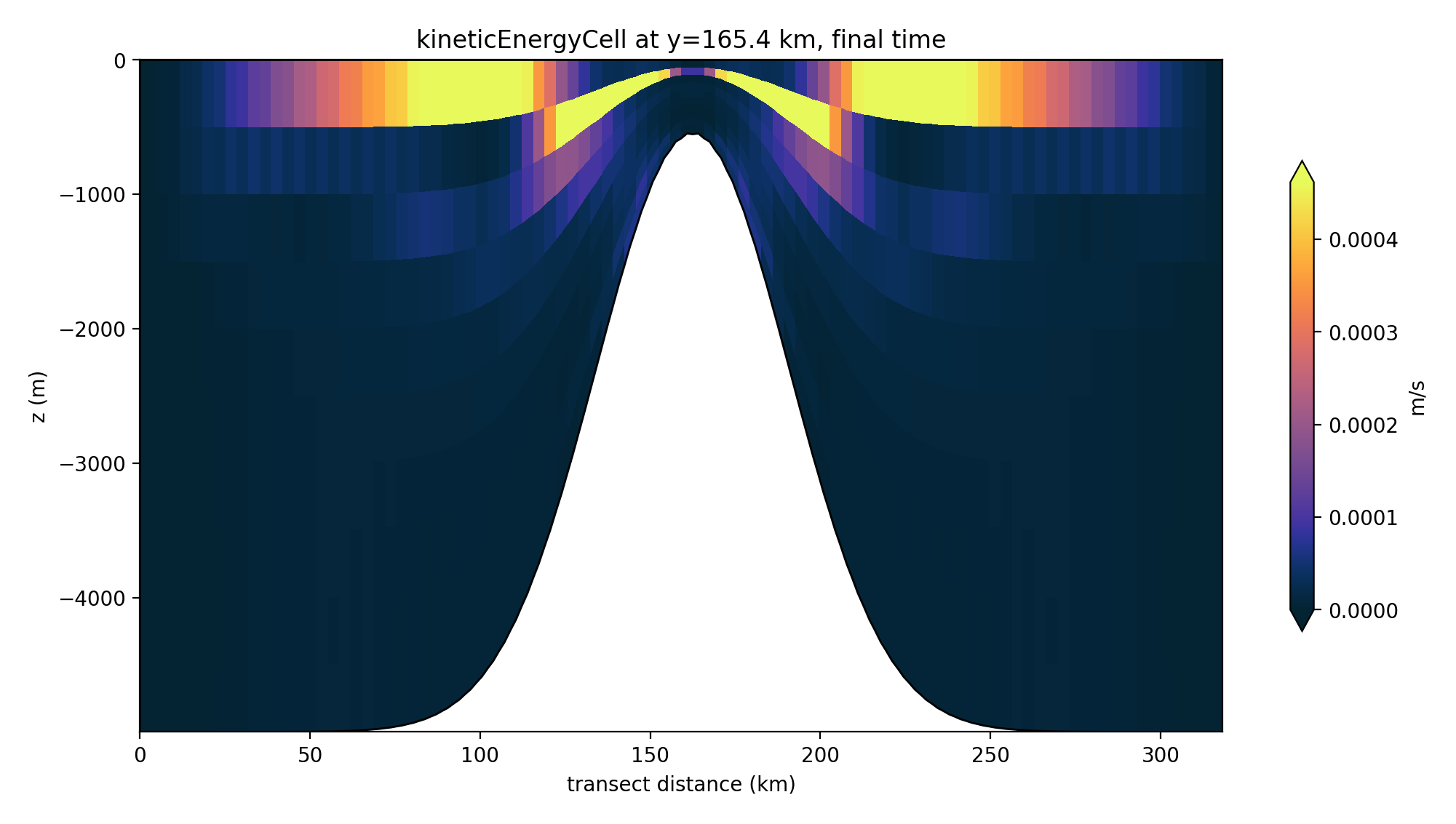

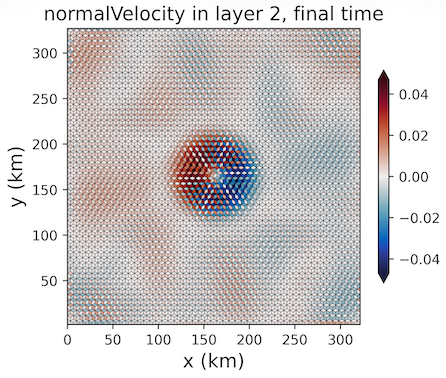

Each forward step gets its own viz step — viz_centered and viz_finite_volume — and an analysis step compares whichever schemes were run.

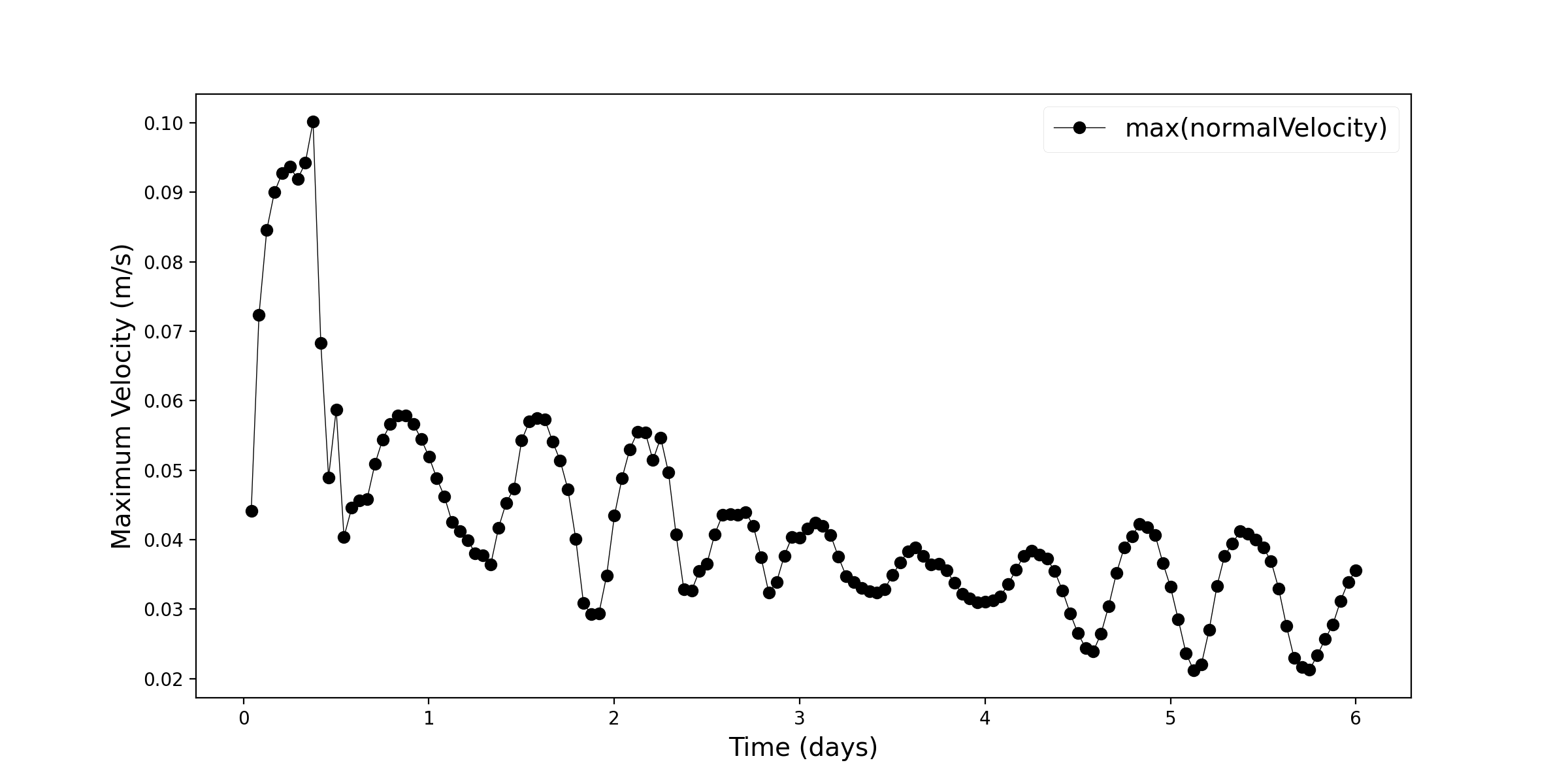

spurious-circulation metrics

The exact solution is a resting ocean, so every velocity in this task is error. The analysis step writes metrics.csv and spurious_velocity_t.png with, for each scheme and output time:

• max_speed, the maximum |normalVelocity| over the whole domain;

• max_speed_level, the level index at which that maximum sits. The centered scheme’s error accumulates downward, so a maximum that is not at the bottom is worth noticing rather than averaging away;

• max_speed_bottom, the same maximum restricted to the deepest valid level of each edge. An edge has water only where both its cells do, so on the seamount flanks this follows the bathymetry rather than a fixed level;

• mean_kinetic_energy, volume-weighted over the domain;

• implied_acceleration and acceleration_ratio;

• unstable_pairs and max_density_inversion, described below.

Warning

unstable_pairs greater than zero invalidates every other metric from that time on. All vertical mixing including convection is off in this task, so nothing restores a column that overturns. Once one does, the run is no longer measuring a spurious circulation against a resting exact solution; it is measuring an unbounded convective response with the response removed, and the velocity grows without any physical bound. The analysis step logs the day this first happens and plots the count against time, and the last panel of spurious_velocity_t.png is where to look before reading any of the others.

This has been observed: on the 6 day linear/exponential/sigma run the finite-volume integration first overturned at day 4 on the seamount flank and reached 232 unstable layer pairs and a 0.15 kg m^{-3} inversion by day 6, while max |u| grew exponentially with an e-folding time of 1.2 days. The centered integration on the same configuration stayed stable throughout.

An absolute spurious velocity says little on its own. What gives it meaning is how it compares to a pressure gradient a realistic configuration actually carries in the layer where the problem shows up, which is what reference_bottom_pressure_grad is for. The conversion from velocity to acceleration is |f| * max|u| — the acceleration a flow of that speed would be in balance with. That is a balanced-state estimate: it is meaningful once the flow has adjusted and overstates the acceleration while it is still spinning up, so read the ratio with the time series in front of you rather than as a single number.

No thresholds are applied. They are meant to be set from what these metrics measure rather than in advance; a threshold guessed before the first measurement is a guard that either cannot fail or fails for the wrong reason.

interface_tilt_<scheme>.png shows how each layer interface’s tilt evolves. Sigma interfaces follow the bathymetry, so the surface starts level and the deepest interfaces start at the full bathymetric slope — but the free surface moves the layers and vertCoordMovementWeights is uniform, so every interface takes a share of the surface-pressure change and the top interface can acquire a tilt it did not start with. The upper panel plots the change since the first output time rather than the tilt itself, which is dominated by the bathymetry and barely moves on its own scale; the lower panel plots the surface tilt against the maximum over all levels, which is where a barotropic adjustment would show up.

mesh

The domain is planar and periodic on the zonal and the meridional boundaries. The 6.4 km resolution is tested by default, which is set by the resolution config option. The domain is 320 km by 320 km, as given by the config options lx and ly, which at 6.4 km is exactly 50 cells across; the hexagonal mesh is 58 cells in the other direction, for 321.5 km.

Neither the domain size nor the resolution is prescribed by Beckmann and Haidvogel — only the seamount shape and the stratification are. The quantity that determines how hard this case is on a tilted coordinate is the discrete steepness of the seamount, max |dh| / (h1 + h2) between adjacent cells, which for a Gaussian seamount is about 1.5 * resolution / seamount_width, or 0.21 here.

vertical grid

The coordinate is set by the task tree, sigma or zstar, as described in variants. coord_type therefore lives in seamount_sigma.cfg / seamount_zstar.cfg rather than in the shared config below. One may also test coord_type = z-level.

All of these are geometric coordinates, so all of them reach Omega through the same pseudo-height conversion, under either equation of state.

The 32 levels divide the 5000 m bottom depth into exact 156.25 m layers. That is a multiple of 16, which Omega prefers, and it sits in the range the literature uses for this case (20 in Beckmann and Haidvogel, 20-30 in Shchepetkin and McWilliams). It also keeps the z-star tree usable: with the 10 levels this task used previously, the 500 m summit column would have had a single level.

partial_cell_type = None means no alteration, so the original bottom depth is used; partial snaps the bottom cell to at least min_pc_fraction of a full cell, and full snaps it to a whole cell. The z-star tree overrides the default below to partial, because without snapping the seamount flanks produce bottom cells only centimetres thick.

# Options related to the vertical grid
[vertical_grid]

# Depth of the bottom of the ocean (m)
bottom_depth = 5000.0

# Number of vertical levels
vert_levels = 32

# The type of vertical grid
grid_type = uniform

# Whether to use "partial" or "full", or "None" to not alter the topography
partial_cell_type = None

# The minimum fraction of a layer for partial cells
min_pc_fraction = 0.1

initial conditions

Salinity is constant throughout the domain at the value given by the config option constant_salinity (35 by default), read as practical salinity in the linear trees and as absolute salinity in the nonlinear ones. The initial density is based on the formulas given in Beckmann and Haidvogel (1993) equations 15-16. Temperature is then back-computed from that density, so the profile rather than the temperature is what the two equations of state have in common.

In the linear trees the inversion is algebraic: the equation of state that Polaris and both ocean models apply, rho = rhoref - alpha * (T - Tref) + beta * (S - Sref), is solved for T using the eos_linear_* options in the ocean section. The salinity term matters: dropping it would leave the model’s density offset from the Beckmann and Haidvogel profile by beta * S, which is harmless in MPAS-Ocean but not in Omega, where the geometric-to-pseudo-height mapping depends on the absolute density.

In the nonlinear trees the profile is read as a potential density referenced to the surface, and conservative temperature comes from gsw.CT_from_rho at zero reference pressure. It cannot be read as in-situ density: TEOS-10 in-situ density at 5000 m is near 1050 kg m^{-3} from compression alone, well outside the 1025-1028 kg m^{-3} range the profile spans, so no temperature would reproduce it below about 1000 m. Referencing to the surface also means the linear and nonlinear trees share a buoyancy stratification exactly while their in-situ densities differ by more than 20 kg m^{-3} at depth — which is the point, since that difference is what a nonlinear equation of state contributes to the pressure gradient error.

Omega receives conservative temperature and absolute salinity directly. For MPAS-Ocean the nonlinear tracers are converted to potential temperature and practical salinity at a nominal lon/lat location (config options ocean:nominal_lon and ocean:nominal_lat, both defaulting to 0 degrees) since the planar mesh has no geographic location.

a stratification linear in pressure

seamount_stratification_type = linear_pressure replaces the Beckmann and Haidvogel profile with one prescribed on temperature rather than on density:

T = seamount_temperature_coef_linear_pressure
    - seamount_temperature_gradient_linear_pressure
      * p / seamount_pressure_ref_linear_pressure

with salinity constant as before. A finite-volume pressure gradient reconstructs the tracers as polynomials in pressure and is exact when the continuous profile is linear in pressure, so its error vanishes on this configuration and a spurious velocity that survives has some other source. Running it alongside the centered scheme, and alongside the realistic exponential profile, is what makes that a measurement rather than an assumption.

Two things are needed for the exactness to hold, and both are checked by tests/ocean/seamount/test_linear_in_pressure.py:

• The layer values are exact layer means, not point samples. Both models carry a layer-mean tracer, and the mean is over the mass of the layer, which is the same as over its pressure range. For a profile linear in pressure that mean is the value at the layer’s mid-pressure, so no quadrature is needed — but a sample at the geometric mid-depth would leave an O(h^2) error that the exactness argument does not allow for.

• The profile is a fixed point, not a formula. Temperature is a function of pressure, pressure follows from the geometric layer thicknesses through the specific volume, and the specific volume follows from the temperature. The initial condition iterates all three to round-off, so the profile is linear in the pressure the model itself carries.

Neither Beckmann and Haidvogel profile has this property, and the linear one is close enough to be mistaken for it. A density linear in geometric depth makes pressure quadratic in depth, since specific volume varies down the column, so temperature departs from a straight line in pressure by 8.5e-6 of its range under the linear equation of state and 6.9e-4 under TEOS-10 — small, but ten orders of magnitude above the round-off that an exactness argument needs. The linear_pressure profile reaches 7e-15 on the same measure.

The temperature range defaults to 15 degC over 5000 dbar, which under the linear equation of state spans 3.0 kg m^{-3} — the same density range as the exponential Beckmann and Haidvogel profile, so the two runs have the same total buoyancy range and a spurious velocity measured on one is comparable to the other. The stratification is spread uniformly rather than concentrated in the upper 500 m, so the deep layers are more strongly stratified than in the exponential profile, not less.

Because the tracer is prescribed directly rather than inverted from a density, the linear and nonlinear trees span the same temperature range here, not the same density range — the reverse of the Beckmann and Haidvogel profiles.

forcing

N/A

horizontal and vertical mixing, and bottom drag

Momentum mixing is Laplacian viscosity at 200 m^2 s^-1 plus hyperviscosity at 3.2e9 m^4 s^-1. Tracer diffusion, both Laplacian and biharmonic, is switched off explicitly rather than left to a model default. Leaving it unset had Omega running with EddyDiff2 = 10 m^2 s^-1 while MPAS-Ocean ran with none – an unintended difference in a case whose point is partly to compare the two models. It acts along the coordinate surfaces, and on a sigma coordinate over a seamount those are tilted, so at a slope of 0.1 it is an effective diapycnal diffusivity of order 0.1 m^2 s^-1 in a case whose exact solution is a resting ocean.

All vertical mixing is off in both models. The exact solution is a resting ocean, so the only thing that would trigger convection is a spurious pressure gradient — the quantity being measured — and convection is a known source of MPAS-Ocean/Omega divergence, since Omega uses a single coefficient for both convective diffusivity and viscosity. Convection and shear mixing are switched off explicitly and the background diffusivity and viscosity are zeroed, because Omega defaults them on; MPAS-Ocean additionally sets config_use_cvmix = false, which leaves its vertical viscosity and diffusivity at zero.

Only the coefficients are zeroed. The implicit vertical mixing solve itself stays on in both models, because that is what applies the implicit bottom drag; Omega aborts if the vertical mixing tendency is disabled while the bottom drag is implicit.

Bottom drag is implicit and constant in both models, at bottom_drag_coeff = 1.0e-3. That is an order of magnitude below the value comparable idealized planar cases use. The implicit drag damping timescale is h_bot / (Cd * |u|), and the bottom layer over the seamount summit is only about 16 m thick, so at 1.0e-2 a 5 cm/s spurious velocity would damp in under half a day against a 6 day run — capping a bad pressure gradient while leaving a good one untouched, and compressing the dynamic range this test exists to measure.

time step and run duration

The time step for forward integration is automatically computed based on the gridcell size. The run duration is as follows.

[seamount_default]

# Run duration (hours)
run_duration = 144.

# Output interval (hours)
output_interval = 1.

config options

The following config section is specific to this test case:

# Options related to the seamount case
[seamount]

# Baroclinic timestep per km horizontal resolution (s), shared by both
# models, 30 barotropic substeps long
dt_per_km = 56.25

# Barotropic timestep per km horizontal resolution (s), shared by both models
btr_dt_per_km = 1.875

# Time integrator, shared by both models: Omega maps this to SplitExplicitRK2
time_integrator = split_explicit

# Horizontal tracer advection order, shared by both models
horiz_adv_order = 3

# Constant bottom drag coefficient
bottom_drag_coeff = 1.0e-3

# The width of the domain in the across-slope dimension (km)
ly = 320

# The length of the domain in the along-slope dimension (km)
lx = 320

# Distance between two cell centers (km)
resolution = 6.4

# Bottom depth at bottom of seamount
max_bottom_depth = ${vertical_grid:bottom_depth}

# The vertical profile of the tracers
# possible_values="linear, exponential, linear_pressure"
seamount_stratification_type = exponential

# Density coefficient for linear vertical stratification (kg m^{-3})
seamount_density_coef_linear = 1024.0

# Density coefficient for exponential vertical stratification (kg m^{-3})
seamount_density_coef_exp = 1028.0

# Density gradient for linear vertical stratification, Delta_z rho in Beckmann and Haidvogel eqn 15 (kg m^{-3})
seamount_density_gradient_linear = 0.1

# Density gradient for exponential vertical stratification, Delta_z rho in Beckmann and Haidvogel eqn 16 (kg m^{-3})
seamount_density_gradient_exp = 3.0

# Density reference depth for linear vertical stratification (m)
seamount_density_depth_linear = 4500.0

# Density reference depth for exponential vertical stratification (m)
seamount_density_depth_exp = 500.0

# Temperature at zero pressure for the linear_pressure stratification (degC)
seamount_temperature_coef_linear_pressure = 20.0

# Temperature change over seamount_pressure_ref_linear_pressure (degC)
seamount_temperature_gradient_linear_pressure = 15.0

# The pressure the temperature gradient is spanned over (dbar)
seamount_pressure_ref_linear_pressure = 5000.0

# Height of sea mount, H_0 (m)
seamount_height = 4500.0

# Width parameter of sea mount, e-folding length (m)
seamount_width = 40.0e3

# Salinity of the water in the entire domain, read as practical salinity
# (PSU) for the linear trees and as absolute salinity (g kg^-1) for the
# nonlinear ones
constant_salinity = 35.0

# A physical bottom-layer horizontal pressure-gradient acceleration (m s^-2)
# for the analysis step to report the spurious circulation as a fraction of
reference_bottom_pressure_grad = 2.1e-6

The nonlinear trees add no config options of their own; they take their equation of state from polaris.ocean.eos’s teos10.cfg and the nominal location for the salinity conversion from the shared ocean section.

The Coriolis parameter is set in the shared coriolis section:

# config options for Coriolis
[coriolis]

# type of Coriolis: zero, constant, beta_plane, spherical, or rotated_sphere
type = constant

# the constant Coriolis parameter
constant_f = -1.0e-4

The linear trees configure their equation of state in ocean, through seamount_linear_eos.cfg. eos_linear_Tref must be zero, because Omega’s linear equation of state has no reference temperature; the Beckmann and Haidvogel reference state (1028 kg m^{-3} at T = 5 C, S = 35 PSU) is folded into eos_linear_rhoref instead, as 1028.0 + 0.2 * 5.0 - 0.8 * 35.0 = 1001.0. eos_linear_beta and eos_linear_Sref come from polaris.ocean.eos’s linear.cfg. These options have no meaning in the nonlinear trees, which is why they live in a per-variant config rather than the shared one.

# Options related the ocean component
[ocean]

# Equation of state reference density when T and S are the reference values
eos_linear_rhoref = 1001.

# Equation of state -drho/dT
eos_linear_alpha = 0.2

# Equation of state reference temperature
eos_linear_Tref = 0.

The nonlinear trees instead pick up polaris.ocean.eos’s teos10.cfg, which sets eos_type = teos-10 and nothing else; Polaris maps that to jm for MPAS-Ocean.

cores

The number of cores is determined by goal_cells_per_core and max_cells_per_core in the ocean section of the config file.

short task

description

The short task is the default task run for 1 hour instead of 6 days. It exists for regression testing: an hour is far too short for the spurious circulation to develop, so it says nothing about the pressure gradient error, but it is long enough to catch a change in the answer cheaply. It is otherwise identical to the default task — same mesh, vertical grid, initial condition, time step and physics — except that it runs the centered scheme only, and it exists in all eight trees.

The viz_centered step is present but does not run by default here, since re-running the task to get the plots costs almost nothing. There is no analysis step: an hour of a resting ocean is not a measurement.

Three of the eight are in the mpaso_pr and omega_pr suites:

• planar/seamount/linear/exponential/zstar/short

• planar/seamount/nonlinear/exponential/sigma/short

• planar/seamount/nonlinear/linear_pressure/sigma/short

The first two cover both equations of state and both vertical coordinates in two runs rather than four. The third covers the linear-in-pressure initial condition, whose fixed-point iteration is the only part of the initial condition that has to converge rather than evaluate; TEOS-10 is what makes it have to, since the specific volume depends on pressure.

time step and run duration

The time step is computed from the gridcell size exactly as in the default task. Only the duration and output interval differ:

[seamount_short]

# Run duration (hours)
run_duration = 1.

# Output interval (hours)
output_interval = 0.5

The output interval is half the run duration so that the time series the viz_centered step plots has more than a single point in it.

config options

The short task adds no config options beyond the [seamount_short] section above; everything else comes from the shared options listed under default task.
