external gravity wave

The external_graivty_wave_*_time_step/convergence_time tasks implement a simple external gravity wave test case evaluate the time-convergence of time-stepping schemes in the simplest possible model configuration.

Note that this is not a shallow water test case. While the standard, non-linear shallow water thickness equation has been left alone, all tendencies in the momentum equation have been turned off, save the pressure gradient term. The resulting equations are given by

\[\begin{split} \begin{align} &\partial_t \mathbf{u} = -g \nabla h \\ &\partial_t h + \nabla \cdot (h\mathbf{u}) = 0 \,. \end{align} \end{split}\]

In particular, this task is used to test the convergence of local time-stepping schemes (LTS and FB_LTS) that employ a operator splitting in which tendency terms other than those above are advanced with a first-order error. As a result, this task helps to show that these local time-stepping schemes are achieving the correct theoretical order of convergence is said splitting was not used.

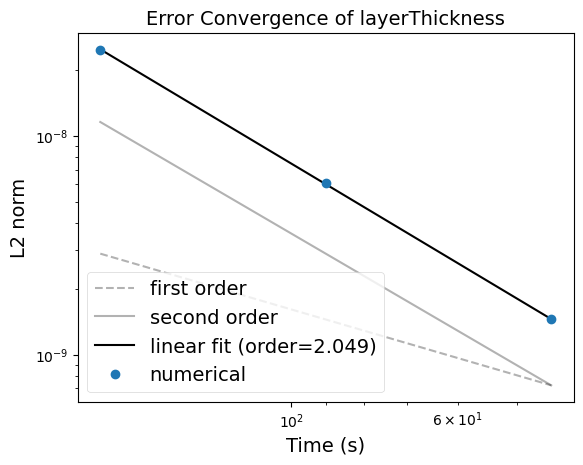

To calculate errors, the task runs the case once at a small time-step to generate a reference solution. The result of the analysis step of each task is a plot like the following showing convergence as a function of the cell size and/or the time step:

../../../_images/external_gravity_wave_convergence.png

supported models

These tasks currently only support MPAS-Ocean.

mesh

Two global mesh variants are tested, quasi-uniform (QU) and icosohydral. In addition, the tests can be set up to use either local or global time-stepping methods. Thus, there are 4 variants of the task:

ocean/spherical/icos/external_gravity_wave_global_time_step/convergence_time
ocean/spherical/icos/external_gravity_wave_local_time_step/convergence_time
ocean/spherical/qu/external_gravity_wave_global_time_step/convergence_time
ocean/spherical/qu/external_gravity_wave_local_time_step/convergence_time

The default resolutions used in the task depends on the mesh type.

For the icos mesh type, the default is 60, as determined by the following config option. See Convergence Tests for more details.

# config options for spherical convergence tests
[spherical_convergence]

# The base resolution for the icosahedral mesh to which the refinement
# factors are applied
icos_base_resolution = 60.

For the qu mesh type, it is 120 km as determined by the following config option:

# config options for spherical convergence tests
[spherical_convergence]

# The base resolution for the quasi-uniform mesh to which the refinement
# factors are applied
qu_base_resolution = 120.

# a list of quasi-uniform mesh resolutions (km) to test
qu_refinement_factors = 0.5, 0.75, 1., 1.25, 1.5, 1.75, 2.

To alter the resolutions used in the convergence tasks, you will need to create your own config file (or add a spherical_convergence section to a config file if you’re already using one). If you specify a different resolution before setting up external_gravity_wave, steps will be generated with the requested resolution (if you alter icos_resolutions or qu_resolutions in the task’s config file in the work directory, nothing will happen). For icos meshes, make sure you use a resolution close to those listed in Spherical Meshes. Each resolution will be rounded to the nearest allowed icosahedral resolution.

The base_mesh steps are shared with other tasks so they are not housed in the external_gravity_wave work directory. Instead, they are in work directories like:

ocean/spherical/icos/base_mesh/60km
ocean/spherical/qu/base_mesh/60km

vertical grid

For this task, only a single vertical level may be used. The bottom depth is constant and the results should be insensitive to the choice of bottom_depth.

# Options related to the vertical grid
[vertical_grid]

# the type of vertical grid
grid_type = uniform

# Number of vertical levels
vert_levels = 1

# Depth of the bottom of the ocean
bottom_depth = 1000.0

# The type of vertical coordinate (e.g. z-level, z-star)
coord_type = z-level

# Whether to use "partial" or "full", or "None" to not alter the topography
partial_cell_type = None

# The minimum fraction of a layer for partial cells
min_pc_fraction = 0.1

initial conditions

The fluid velocity is initialized to zero, and the layer thickness is given as a simple Gaussian bump

\[ h = e^{-100 \left( \left(\phi - \phi_0\right)^2 + \left(\theta - \theta_0\right)^2 \right)} \]

where \(\phi\) is latitude, \(\theta\) is longitude, \(\phi_0 = 0\), and \(\theta_0 = \pi / 2\). Here, \(\phi_0\) and \(\theta_0\) can be set by lat_center and lon_center as config options.

forcing

N/A

time step and run duration

With any given time-stepping scheme, the time step for forward integration is determined by multiplying the resolution by a config option, rk4_dt_per_km, so that coarser meshes have longer time steps. You can alter this before setup (in a user config file) or before running the task (in the config file in the work directory).

# config options for convergence tests
[convergence_forward]

# time integrator: {'split_explicit', 'RK4'}
time_integrator = RK4

# RK4 time step per resolution (s/km), since dt is proportional to resolution
rk4_dt_per_km = 3.0

The convergence_eval_time, run_duration and output_interval are set to 2 days:

# config options for convergence forward steps
[convergence_forward]

# Run duration in hours
run_duration = 48.

# Output interval in hours
output_interval = ${convergence_forward:run_duration}

config options

The primary external_graivty_wave config options are:

# options for external gravity wave convergence test case
[external_gravity_wave]

# the constant temperature of the domain
temperature = 15.0

# the constant salinity of the domain
salinity = 35.0

# the central latitude (rad) of the gaussian bump
lat_center = 0.0

# the central longitude (rad) of the gaussian bump
lon_center = 1.57079633

Additionally, for the global and local time-stepping variants of this task, the user can configure the time-integrator used. For the global variant:

# config options for convergence forward steps
[convergence_forward]

# time integrator
#  either: {'RK4'}
#  mpas-ocean: {'split_explicit'}
#  omega: {'Forward-Backward', 'RungeKutta2'}
time_integrator = RK4

For the local variant:

# config options for convergence forward steps
[convergence_forward]

# local time integrator
#  mpas-ocean: {'LTS, FB_LTS'}
#  omega: None
time_integrator = FB_LTS

cores

The target and minimum number of cores are determined by goal_cells_per_core and max_cells_per_core from the ocean section of the config file, respectively. This ensures that the number of cells per core is roughly constant across the different resolutions in the convergence study.
