Planar Periodic Meshes

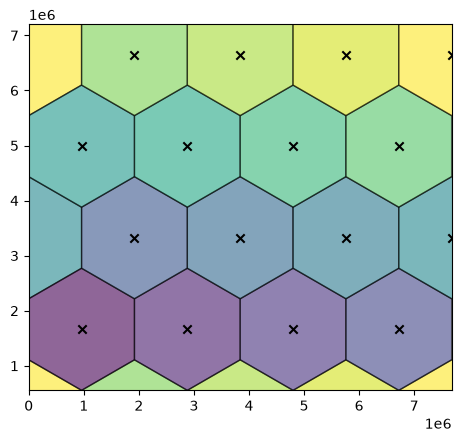

For patches of a planar periodic mesh that cross a periodic boundary we correct the patch coordinates to remove the periodicity and mirror the patches across the periodic boundary. The end product of both correcting and mirroring periodic patches is a fully periodic plot as demonstrated below:

Source code to generate figure below

Source code to generate figure below

import mosaic
import matplotlib.pyplot as plt

# download and read the mesh from lcrc
ds = mosaic.datasets.open_dataset("doubly_periodic_4x4")

# create the figure
fig, ax = plt.subplots(figsize=(4.5, 4.5), constrained_layout=True,)

descriptor = mosaic.Descriptor(ds)

pc = mosaic.polypcolor(
    ax, descriptor, ds.indexToCellID, alpha=0.6, antialiaseds=True, ec="k"
)

ax.scatter(descriptor.ds.xCell, descriptor.ds.yCell, c='k', marker='x')
ax.set_aspect('equal')

Periodic plotting (i.e. correcting and mirroring) of Edge and Vertex fields is also supported. All planar periodic patches will have the same “tight” axis limits, as defined by periods of the underlying mesh.
