Spherical Meshes

The spherical meshes that have broad support accross tasks can be created with the shared helper function polaris.mesh.base.add_spherical_base_mesh_step(). Each mesh is defined by a prefix (see the table below) and a min_res as well as an optional max_res (both in km). These meshes are all created with the JIGSAW and JIGSAW-Python tools.

from polaris.mesh.base import add_spherical_base_mesh_step

mesh_step = add_spherical_base_mesh_step(
    prefix='qu',
    min_res=120.0,
)

from polaris.mesh.base import add_spherical_base_mesh_step

mesh_step = add_spherical_base_mesh_step(
    prefix='so',
    min_res=12.0,
    max_res=30.0,
)

prefix	mesh description
qu	quasi-uniform resolution
icos	dual mesh of a subdivided icosahedron
rrs	resolution approximately scaled by the Rossby radius
so	resoluiton enhanced in the Southern Ocean

To define a new shared mesh or for more specialized meshes, can instantiate polaris.mesh.QuasiUniformSphericalMeshStep or polaris.mesh.IcosahedralMeshStep directly when you need more control. For more complex meshes, use polaris.mesh.QuasiUniformSphericalMeshStep as a base class and override polaris.mesh.QuasiUniformSphericalMeshStep.build_cell_width_lat_lon().

A developer can also customize the options data structure passed on to JIGSAW either by modifying the opts attribute of either of these classes or by overriding the polaris.mesh.IcosahedralMeshStep.make_jigsaw_mesh() or polaris.mesh.QuasiUniformSphericalMeshStep.make_jigsaw_mesh() methods.

The following config options are associated with spherical meshes:

# config options related to spherical meshes
[spherical_mesh]

# for icosahedral meshes, whether to use cell_width to determine the number of
# subdivisions or to use subdivisions directly
icosahedral_method = cell_width

# output file names
jigsaw_mesh_filename = mesh.msh
jigsaw_geom_filename = geom.msh
jigsaw_jcfg_filename = opts.jig
jigsaw_hfun_filename = spac.msh
triangles_filename = mesh_triangles.nc
mpas_mesh_filename = base_mesh.nc
reconstruction_weights_filename = reconstruction_weights.nc

# JIGSAW mesh-optimization settings
jigsaw_optm_kern = odt+dqdx
jigsaw_optm_iter = 16
jigsaw_optm_qtol = 1.0e-4
jigsaw_optm_qlim = 0.9375

# whether to compute vector-reconstruction weights and stencils at cell
# centers for the base mesh
generate_reconstruction_weights = True

# options related to mesh name and resolution
# the prefix (e.g. Icos, QU, SO, RRS)
prefix = PREFIX
# the minimum (finest) resolution in the mesh
min_cell_width = <<<missing>>>
# the maximum (coarsest) resolution in the mesh, can be the same as
# min_cell_width
max_cell_width = <<<missing>>>

# Antarctic land-ice ownership convention shared by spherical mesh workflows
# and downstream topography-based culling
antarctic_boundary_convention = calving_front


# options related to writing out and plotting cell widths
plot_cell_width = True
cell_width_filename = cellWidthVsLatLon.nc
cell_width_image_filename = cellWidthGlobal.png
cell_width_colormap = 3Wbgy5

# whether to add the mesh density to the file
add_mesh_density = False

# convert the mesh to vtk format for visualization
convert_to_vtk = False

# the subdirectory for the vtk output
vtk_dir = base_mesh_vtk

# whether to extract the vtk output in lat/lon space, rather than on the sphere
vtk_lat_lon = False


# config options related to spherical mesh quality checks
[spherical_mesh_quality]

# whether to check MPAS cell polygons for geometry that can trip remapping
check_cell_geometry = True

# minimum edge length as a fraction of the median edge length in the cell
minimum_edge_length_ratio = 1.0e-5

# minimum sine of each cell corner angle.  Small values indicate nearly
# collinear or spiked consecutive vertices.
minimum_corner_sine = 1.0e-3

# maximum number of failing cells to include in the error message
max_bad_cells_to_report = 1

JIGSAW mesh optimization

jigsaw_optm_kern, jigsaw_optm_iter, jigsaw_optm_qtol and jigsaw_optm_qlim are passed through to JIGSAW by polaris.mesh.QuasiUniformSphericalMeshStep. The defaults are the values the step used before they were configurable, which are also what mpas_tools passes, so a mesh that does not set them is unaffected. (polaris.mesh.IcosahedralMeshStep keeps its own settings and does not read these.)

jigsaw_optm_kern chooses between an Optimal Delaunay Tessellation (odt+dqdx) and a Centroidal Voronoi Tessellation (cvt+dqdx). MPAS cells are the Voronoi dual of the JIGSAW triangulation, so cvt+dqdx optimizes the cells that carry dcEdge rather than the triangulation, and it does give a tighter bulk dcEdge distribution at roughly 1.8 times the mesh-build time.

It is not currently used by any mesh, and it should not be selected without reading the design doc unified_mesh_dc_edge_noise first. On real unified meshes it thinned the bulk about fourfold while introducing rare severe defects: the minimum dcEdge ratio on u-oi6to18-lr6to10 fell from 0.643 to 0.515, and u-oi30-lr10 failed the cell-polygon quality check outright. Because the cull diagnostic reports a minimum over millions of edges, a kernel that improves the bulk and worsens the tail is a net loss.

Reconstruction weights

polaris.mesh.spherical.SphericalBaseStep can add cell-centered vector-reconstruction weights and stencils to the base mesh, written to reconstruction_weights_filename. See Vector Reconstruction for what those fields are and how to use them.

generate_reconstruction_weights controls whether they are computed. They are needed by Omega but not by MPAS-Ocean, and a mesh that gets culled afterward – a unified mesh, for instance – should turn them off, since culling renumbers cells and the weights have to be recomputed on the culled mesh anyway.

Cell-polygon quality checks

After the MPAS mesh is written, SphericalBaseStep checks its cell polygons for geometry that would trip remapping later on, using polaris.mesh.spherical.quality.check_cell_polygon_quality(). The [spherical_mesh_quality] options above tune the check: check_cell_geometry turns it off, minimum_edge_length_ratio and minimum_corner_sine set the thresholds for degenerate edges and spiked corners, and max_bad_cells_to_report limits how many failing cells the error message names.

The default thresholds have several orders of magnitude of margin against genuine degeneracy while still passing meshes built with river-network line constraints, which pin vertices well below the target cell size wherever those lines run. See the comments in polaris/mesh/spherical/spherical.cfg for the measurements the defaults are based on.

Supported Base Mesh Steps

Many polaris tasks and steps are generated only for a set of predetermined, supported base meshes and resolutions. Those meshes are defined by polaris.mesh.base.BASE_MESH_DEFINITIONS, which maps each mesh name to a polaris.mesh.base.BaseMeshDefinition giving its prefix and resolutions. polaris.mesh.base.get_base_mesh_steps() turns those definitions into steps, polaris.mesh.base.get_base_mesh_definition() looks up a single one by name, and polaris.mesh.base.get_base_mesh_step_names() lists the names.

Currently, the following meshes and resolutions are defined:

Uniform:

Icos480km
Icos240km
Icos120km
Icos60km
Icos30km
QU480km
QU240km
QU210km
QU180km
QU150km
QU120km
QU90km
QU60km
QU30km

Variable:

SO12to30km
RRS6to18km

If you wish to add a new resolution (in km), edit the list of either uniform or variable resolutions in _get_base_mesh_definitions() in polaris/mesh/base/__init__.py:

    uniform_res = {
        'icos': [480.0, 240.0, 120.0, 60.0, 30.0],
        'qu': [480.0, 240.0, 210.0, 180.0, 150.0, 120.0, 90.0, 60.0, 30.0],
    }

    variable_res = {
        'so': [(12.0, 30.0)],
        'rrs': [(6.0, 18.0)],
    }

Each variable resolution mesh has a tuple of the finest and coarsest resolution.

To add a new type of base mesh, you first need to add its base class to MESH_CLASSES and MESH_NAME_PREFIXES in polaris/mesh/base/add.py:

MESH_CLASSES = {
    'icos': IcosahedralMeshStep,
    'qu': QuasiUniformSphericalMeshStep,
    'rrs': RRSBaseMesh,
    'so': SOBaseMesh,
}

MESH_NAME_PREFIXES = {
    'icos': 'Icos',
    'qu': 'QU',
    'rrs': 'RRS',
    'so': 'SO',
}

Then, you can add the prefix and its associated resolutions to _get_base_mesh_definitions() as above.

By adding new mesh prefixes and/or resolutions to that function, a version of each task that builds on base meshes (such as those for remapping topography and culling out land or ocean) will be added to the list of tasks when you run polaris list.

Approximately Uniform Spherical Meshes

Icosahedral meshes will be significantly more uniform and smooth in cell size than quasi-uniform spherical meshes. On the other hand, icosahedral meshes are restricted to resolutions that are an integer number of subdivisions of an icosahedron. The following table shows the approximate resolution of a mesh with a given number of subdivisions:

subdivisions	cell width (km)
5	240
6	120
7	60
8	30
9	15
10	7.5
11	3.8
12	1.9
13	0.94

Rossby-radius Scaled (RRS) Meshes

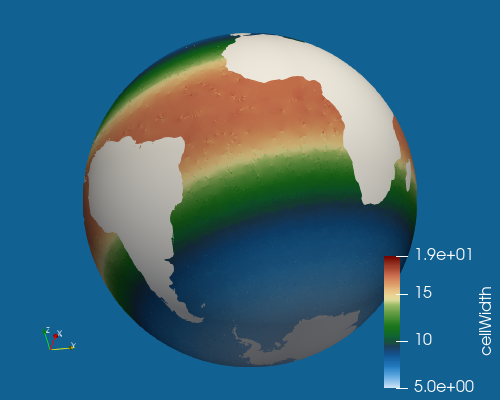

The RRS meshes are defined by polaris.mesh.base.rrs.RRSBaseMesh and have a resolution that ranges from finest at the poles to coarsests at the equator, scaling approximately with the Rossby radius. The scaling is:

\[w(\phi) = \frac{r_{\min}}{\Big[\,\gamma + (1-\gamma)\,\sin^{4}(|\phi|)\,\Big]^{1/4}},\quad \gamma = \left(\frac{r_{\min}}{r_{\max}}\right)^{4}.\]

Where \(\phi\) is the latitude in radians and \(r_{\min}\) and \(r_{\max}\) are the finest and coarsest resolutions, respectively.

Southern Ocean (SO) Meshes

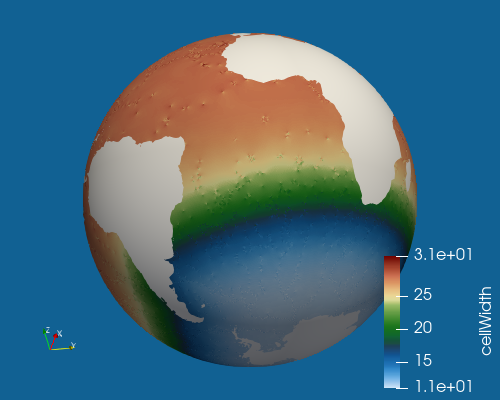

The SO meshes are defined by polaris.mesh.base.so.SOBaseMesh and have a quasi-uniform, coarse background resolution that transitions to a higher resolution region surrounding the Southern Ocean. The high resolution region is defined by a geojson shape that attempts to approximatly follow dynamical ocean contours since rapid changes in resolution have been shown to steer ocean currents along isocontours of resolution.
