Topography Tasks

The polaris.tasks.e3sm.init.topo module provides tools for working with topography data in Polaris. This includes steps for processing, modifying, and combining topography datasets to create inputs for E3SM components such as MPAS-Ocean. The framework is designed to handle both global and regional datasets, supporting various grid types like lat-lon and cubed-sphere grids.

Combine Steps and Tasks

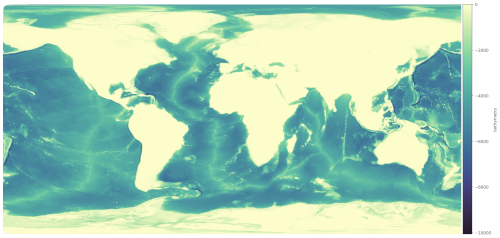

../../../../_images/bathymetry_500.png

Global bathymetry datasets do not typically include the latest datasets around Antarctica needed for ice-sheet and ice-shelf modeling. For this reason, we typically combine a global topography dataset north of the Southern Ocean with one for Antarctica.

Note

At the moment, the step for combining these datasets provides fields that are masked to locations where the bed topography (bathymetry) is below sea level. This avoids the risk of interpolated topography resulting in a bed that is above sea level in ocean regions when we perform further interpolation of the data to an MPAS mesh. However, a more general topography dataset will likely be needed in the future that accommodates both the ocean and land/river components.

The polaris.tasks.e3sm.init.topo.combine.CombineStep step is a key component of the topography framework. It is responsible for combining global and Antarctic topography datasets into a single dataset suitable for use in E3SM simulations. The step supports blending datasets across specified latitude ranges and remapping them to a target grid.

The polaris.tasks.e3sm.init.topo.combine.CombineTask wraps the CombineStep into a task that can be used to generate and cache combined topography datasets for reuse in other contexts.

The polaris.tasks.e3sm.init.topo.combine.VizCombinedStep step is an optional visualization step that can be added to the workflow to create plots of the combined topography dataset. This step is particularly useful for debugging or analyzing the combined dataset.

High-Resolution and Low-Resolution Versions

There are two versions of the combine steps and task:

  1. Standard (High-Resolution) Version: This version maps to a high-resolution (ne3000, ~1 km) cubed-sphere grid by default, producing topogrpahy that is suitable for remapping to standard and high-resolution MPAS meshes (~60 km and finer).

  2. Low-Resolution Version: This version uses a coarser ne120 (~25 km) grid for faster remapping to coarse-resolution MPAS meshes (e.g., Icos240). It is designed to reduce computational cost while still providing adequate accuracy for low-resolution simulations used for regression testing rather than science.

The low-resolution version can be selected by setting the low_res parameter to True when creating the CombineStep or CombineTask.

Key Features

  • Dataset Support: Supports multiple datasets, including bedmap3, bedmachinev3, and gebco2023.

  • Grid Types: Handles both lat-lon and cubed-sphere target grids.

  • Blending: Blends global and Antarctic datasets across a configurable latitude range.

  • Remapping: Uses tools like mbtempest, ESMF_RegridWeightGen and ncremap for remapping datasets to the target grid.

  • Output: Produces combined topography datasets with consistent variables and attributes.

  • Visualization: Generates rasterized images of various fields (e.g., bathymetry, ice draft) using the datashader library.

Configuration Options

The CombineStep step is configured through the [combine_topo] section in the configuration file. Key options include:

  • resolution_latlon: Target resolution for lat-lon grids (in degrees).

  • resolution_cubedsphere: Target resolution for cubed-sphere grids (e.g., 3000 for NExxx grids).

  • latmin and latmax: Latitude range for blending datasets.

  • ntasks and min_tasks: Number of MPI tasks for remapping.

  • method: Remapping method (e.g., bilinear).

For the low-resolution version, additional configuration options are provided in the combine_low_res.cfg file.

Workflow

  1. Setup: The step downloads required datasets and sets up input/output files.

  2. Modification: Antarctic and global datasets are modified to include necessary variables and attributes.

  3. Remapping: Datasets are remapped to the target grid using SCRIP files and weight generation.

  4. Blending: The datasets are blended across the specified latitude range.

  5. Output: The combined dataset is saved in NetCDF format.

  6. Optional Field Plotting: Each field in the dataset is rasterized and saved as an image with a colorbar.

Example Usage

Below is an example of how the CombineStep can be added to a Polaris task:

from polaris.tasks.e3sm.init.topo.combine import CombineStep

component = task.component
subdir = CombineStep.get_subdir(low_res=False)
if subdir in component.steps:
    step = component.steps[subdir]
else:
    step = CombineStep(component=component, low_res=False)
    component.add_step(step)
task.add_step(step)

To create a CombineTask for caching combined datasets:

from polaris.tasks.e3sm.init.topo.combine import CombineTask

combine_task = CombineTask(component=my_component, low_res=False)
my_component.add_task(combine_task)

Below is an example of how the VizCombinedStep can be added to a Polaris task:

from polaris.tasks.e3sm.init.topo.combine import VizCombinedStep

viz_step = VizCombinedStep(component=my_component, combine_step=combine_step)
my_component.add_step(viz_step)

Since there is a single shared step for each pair of Antarctic and global datasets, the step should be added only once to the component and the existing step (identifiable via its subdir) should be used subsequently.

The VizCombinedStep is typically added only when visualization is explicitly required, as it is not part of the default workflow.

For more details, refer to the source code of the polaris.tasks.e3sm.init.topo.combine.CombineStep and polaris.tasks.e3sm.init.topo.combine.CombineTask classes.

Note

Since this step is expensive and time-consuming to run, most tasks will want to use cached outputs from this step rather than running it in full.
